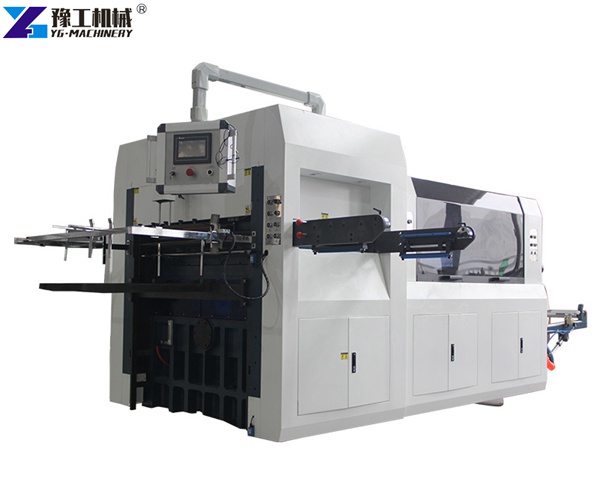

The carton die-cutting machine is a kind of equipment specially used in the paper packaging industry. It is mainly used for die-cutting, creasing and cold embossing operations. It is widely used in the post-processing of trademarks, cartons, greeting cards and other products.
Main functions of Box Die Cutting Machine

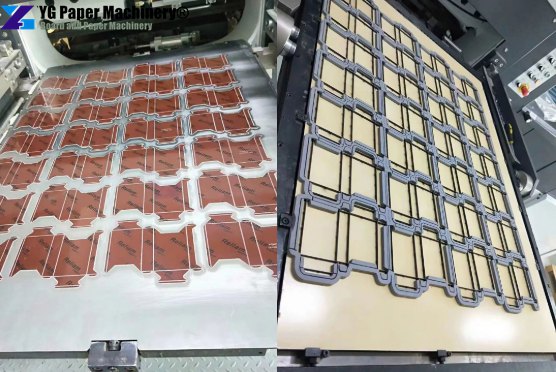

- Die-cutting: Cut the paper with a knife to form the required shape.
- Cringing: Press out folding lines on the paper to facilitate subsequent folding and assembly.
- Cold embossing: Use pressure to make the surface of the paper have a concave and convex effect to enhance the visual effect.
Technical configurations of carton box die cutting machine
| Model | 970*550 | 970*640 | 1200*640 |
| Cutting Precision | ±0.1mm(white paper) | ±0.1mm(white paper) | ±0.1mm(white paper) |
| Rated Cutting Speed | 120-180 times/min | 120-180 times/min | 120-180 times/min |
| Max. Cutting Pressure | 320T | 320T | 320T |
| Max. Cutting Paper Size(W*L) | 950mm*510mm | 950mm*610mm | 1150mm*610mm |
| Min. Cutting Paper Size(W*L) | 400mm*350mm | 400mm*350mm | 400mm*350mm |
| Suitable paper weight | 100-500g | 100-500g | 100-500g |
| Total power | 18Kw | 18Kw | 18Kw |
| Air pressure requirement | 0.5Mpa | 0.5Mpa | 0..5Mpa |
| Air pressure consumption | 0.25m³/min | 0.25m³/min | 0.25m³/min |
| Dimensions | 4.6m*2.6m*2.3m | 5m*2.6m*2.3m | 5m*2.8m*2.3m |
| Total Weight | 7.6T | 7.8T | 8.6T |
Exploring the Versatility of Carton Paper Box Die Cutter Machine
Die cutting machines are widely used to create unique packaging solutions tailored to specific products, enhancing both functionality and aesthetics. This equipment is a professional equipment for die-cutting, creasing, embossing coated paper, white cardboard, kraft paper and other papers. It is suitable for all paper packaging products such as paper cups, paper boxes, medicine boxes, handbags, etc.
Step-by-Step Guide on Using a Box Die Cutting Machine
​Using a box die cutting machine can transform your crafting experience, allowing you to create precise and intricate designs with ease. Whether you’re a seasoned professional or a beginner looking to delve into the world of die cutting, this step-by-step guide will walk you through the process from start to finish.
Step 1. Prepare
First, ensure that you have all the necessary materials ready, including your desired paper or cardstock, the die you want to use, and the box die cutting machine itself. Familiarize yourself with the machine’s parts and functions, as this will make the process smoother.
Step 2. Die cutting
To begin, set up your box die cutting machine according to the manufacturer’s instructions. This usually involves placing the die on the cutting mat, aligning it correctly, and ensuring that any necessary plates are in place. Once your machine is ready, carefully position your paper or cardstock over the die, making sure that it’s aligned properly to achieve the best results. After everything is in position, close the machine and initiate the cutting process. Most machines operate with a simple turn of a handle or the push of a button, depending on the model you are using.
Step 3. Make the boxes
Once the cutting is complete, carefully open the machine and remove the cutting mat with the newly cut design. It’s essential to handle the components gently to avoid damaging the intricate pieces. Now, you can either pop out the cut shapes or simply lift the mat to release them. This is where the magic happens, as you’ll see your ideas come to life. If you have multiple pieces, organize them so that you can easily assemble your box later on.
The final step is to assemble your box. Use adhesives as necessary to attach all the sides securely, ensuring that your box maintains its shape. Depending on your creativity, you can also decorate your box with stamps, markers, or embellishments before fully assembling it.
Using a box die cutting machine not only streamlines this process but also opens the door to a myriad of possibilities for customization. Enjoy your crafting journey, and don’t hesitate to experiment with different designs and materials!
Contact us to get the price of paper die cutting machine
YG Paper Machinery is a professional paper machinery manufacturer from China. Our paper die cutting machines can work with a wide range of materials beyond just paper, including textiles, plastics, foams, and more.
Looking to streamline your packaging process? Leave your messages and get the powerful paper die cutting machine for improved results!
