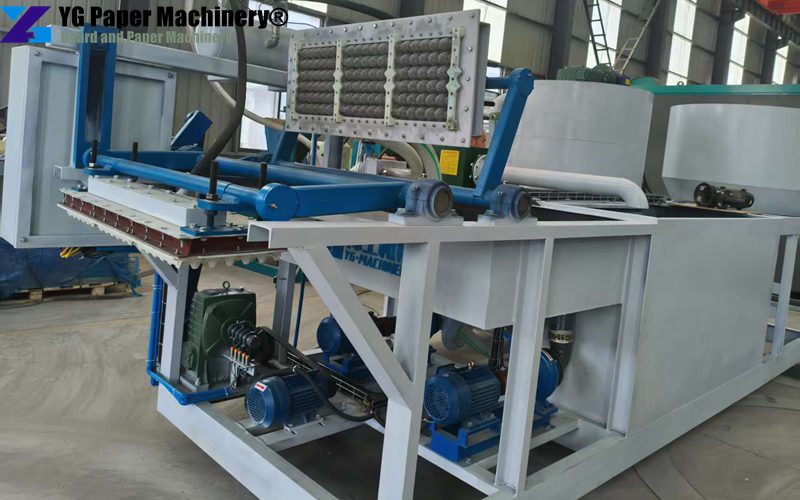

This Egg Tray Production Line is a fully integrated system designed to recycle waste paper into durable, eco-friendly egg trays.

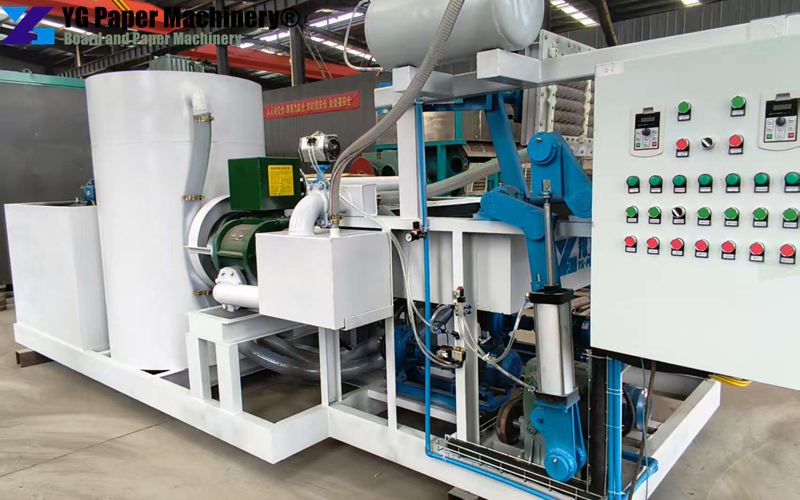

Paper Egg Tray Making Machine
This all-in-one machine combines paper pulping and tray forming into one seamless process, saving time, labor, and operating costs. Unlike traditional multi-stage setups, YG’s system is compact, efficient, and requires minimal intervention.
Technical Parameters
| Type | Capacity | Mold | Main power | Drying consumption |
| YG-2 | 100-500 pcs/h | 1 side 2 forming mold 2 transferring mold | 28kw | Drying by sun |
| YG-4 | 800-1000 pcs/h | 1 side 4 forming mold 4 transferring mold | 33.5kw | 2ton/24hourscoal |
| YG-16 | 2000-2500 pcs/h | 4 side 16 forming mold 4 transferring mold | 60kw | 2.2ton/24hourscoal |
| YG-32 | 3000-4000 pcs/h | 8 side 32 forming mold 4 transferring mold | 116kw | 2.5ton/24hourscoal |
24-hour sales hotline: +8613598866720
Egg Tray Production Line For Sale
If you are a startup entrepreneur, a packaging business owner, or a seasoned investor, thismachine will definetely help your business.
The egg tray production line consists of:
- Paper Pulping Unit: Turns recycled paper into slurry.
- Tray Molding Machine: Shapes the pulp into egg trays using vacuum forming technology.
- Drying System (optional): Dries the wet trays for immediate use or packaging.
- Stacking and Packaging Units (optional): Makes logistics a breeze.
How Does the Integrated Paper Pulping and Tray Forming Machine Work?
- Feeding Waste Paper: Old newspapers, cartons, or office paper are fed into the pulping machine.
- Pulping: The waste is shredded and mixed with water to form a slurry.
- Pulp Screening: The system filters out impurities like plastic and metal to deliver clean, high-quality pulp.
- Forming Egg Trays: The clean pulp is pumped into molds where vacuum technology forms the trays.
- Drying (Optional): Depending on your setup, trays can be air-dried, sun-dried, or dried with automatic systems.
- Stacking and Packing: Ready-to-use trays are automatically stacked and packaged for sale or use.
Applications of Egg Trays Made by YG Machines
| Application | Description |
| Egg Transport | For farms, retailers, and supermarkets. |
| Fruit Packaging | Apples, pears, avocados. |
| Industrial Packaging | Electronics, ceramics, glass products. |
| Seedling Cultivation | Biodegradable nursery trays. |
Pro tip: You can even customize tray designs for different markets!
FAQs About YG Egg Tray Production Line
1. What easily available raw materials can I use?
Mostly waste paper such as newspapers, cartons, office papers, and even books. It’s cheap and easy to source.
2. What is the drying method for egg trays?
You can choose natural drying, brick-kiln drying, or metal drying lines depending on your local climate and budget.
3. How much space do I need to get started?
Depending on production capacity, space requirements can range from 200 m² to 1,000+ m².
4. Can I customize tray shapes?
Absolutely. YG offers custom mold designs for different types of trays: eggs, fruits, cups, even wine bottles.
Contact us today
Ready to turn waste paper into pure profit? Contact YG Machinery now to get your free quote and production line layout consultation!
